PL-VC-202A 1-Port 10/100Base-TX + 1-Port BNC
Ethernet over Coaxial Extender
Ürün Kodu: PL-VC-202A
Fiyat : 885,00 TL +KDV
KDV Dahil  : 1.044,30  TL
Adet Seçiniz
Sepete At
Ürün özellikleri

• Defines Asymmetric (Plan 998) and Symmetric for the transmission of upstream and
 downstream signals
• Cost-effective Profile 17a CO / CPE bridge solution
• One box design, CO / CPE selectable via DIP Switch
• Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3x standards
• DMT (Discrete Multi-Tone) line coding
• Half Duplex Back-Pressure and IEEE 802.3x Full Duplex Pause Frame Flow-Control
• Supports up to 1,536 bytes packet size, IEEE 802.1Q VLAN tag transparent
• Standalone transceiver for simple bridge modem application
• Advantage of minimum installation time (Simply as Plug-and-Play)
• Selectable target band plan and target SNR margin
• Supports extensive LED indicators for network diagnostics
• Co-work with PLANET MC family Media Chassis (MC-700 / 1500 / 1500R / 1500R48)
• Compact in size, easy installation





































Hardware Specification
Ports • 10/100Base-TX: 1 RJ-45, Auto-negotiation and Auto-MDI / MDI-X
• Coaxial: 1 BNC, female connector
DIP Switch 4 position DIP switch
Functionality • CO / CPE mode select
• Selectable fast and interleaved mode
• Selectable target Band Plan
• Selectable target SNR mode
Encoding •DMT (Discrete Multi-Tone) line coding
 - ITU-T G.997.1
 - ITU-T G.993.1
 - ITU-T G.993.2 (Profile 17a Support)
LED Indicators • One Power
• 3 for Coaxial (BNC):
 - Green, LNK
 - Green, CO mode
 - Green, CPE mode
• 2 for per RJ-45 10/100Base-TX port
 - Green, LNK / ACT
 - Green, Speed
Cabling • Ethernet : 10Base-T: 2-pair UTP Cat.3, 4 and 5 up to 100m (328ft)
• Ethernet : 100Base-TX: 2-pair UTP Cat.5, 5e and 6 up to 100m (328ft)

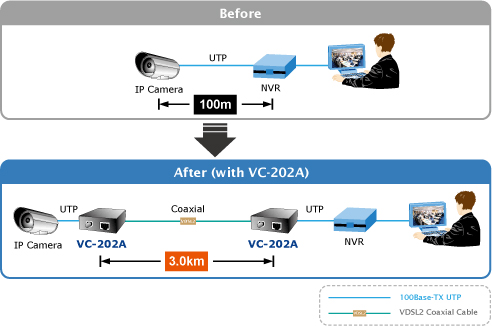

• Coaxial Cable: 50ohm, RG58A / U, RG58C / U, RG58 / U or equivalent; 75ohm, RG-6 (Distance up to 3.0km)
Performance Asymmetric:
 200m ->100/65Mbps
 400m ->100/64Mbps
 600m ->100/59Mbps
 800m ->100/53Mbps
 1000m -> 94/44Mbps
 1200m -> 84/36Mbps
 1400m -> 74/28Mbps
 1600m -> 66/19Mbps
 1800m -> 60/14Mbps
 2000m -> 44/15Mbps
 2200m -> 35/12Mbps
 2400m -> 32/10Mbps
 2600m -> 29/8Mbps
 2800m -> 27/6Mbps
 3000m -> 25/5Mbps

Symmetric:
 200m ->99.7/100Mbps
 400m ->100/100Mbps
 600m -> 86/91Mbps
 800m -> 79/80Mbps
 1000m -> 69/66Mbps
 1200m -> 60/52Mbps
 1400m -> 51/41Mbps
 1600m -> 45/36Mbps
 1800m -> 40/29Mbps
 2000m -> 27/26Mbps
 2200m -> 23/24Mbps
 2400m -> 22/21Mbps
 2600m -> 20/18Mbps
 2800m -> 18/15Mbps
 3000m -> 17/13Mbps
Dimension (W x D x H) 97 x 70 x 26 mm
Weight 0.2 kg
Power Requirement 5V DC 2A
Power Consumption 6.3Watts / 21BTU (maximum)
Standard Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Full Duplex Pause Frame Flow-Control
ITU-T
 - G.993.1
 - G.997.1
 - G.993.2 (Profile 17a Support)
Environment
Operating Temperature: 0 ~ 50 Degree C
Humidity: 5~90%, relative humidity (non-condensing)
Storage Temperature: -10~70 Degree C
Humidity: 5~90%, relative humidity (non-condensing)
* The actual data rate will vary on the quality of the copper wire or coaxial cable and environment
